PERFECTA FLOWPACK

Simultaneously fill and pack in flowpacks – at up to 400 bags/minute. Save time, space and transport.

Proven concepts with new technology from experienced hands.
Andreas Zensen
Head of Assembly/Warehousing at Teepack

THE BENEFITS

  • Tea bag producing and wrapping in one step – no second machine and no transfer required
  • Simple foil replacement thanks to product management system
  • Quick change of bag quantity per flowpack thanks to simple panel operation
  • Easy maintenance thanks to modular design
  • Small space requirement
  • Motor-operated bag weight adjusting mechanism
  • Faulty-bag ejection
  • 10 bags: on request
  • 15 bags: up to 350 bags/min
  • 20 bags + more: 400 bags/min
  • Details

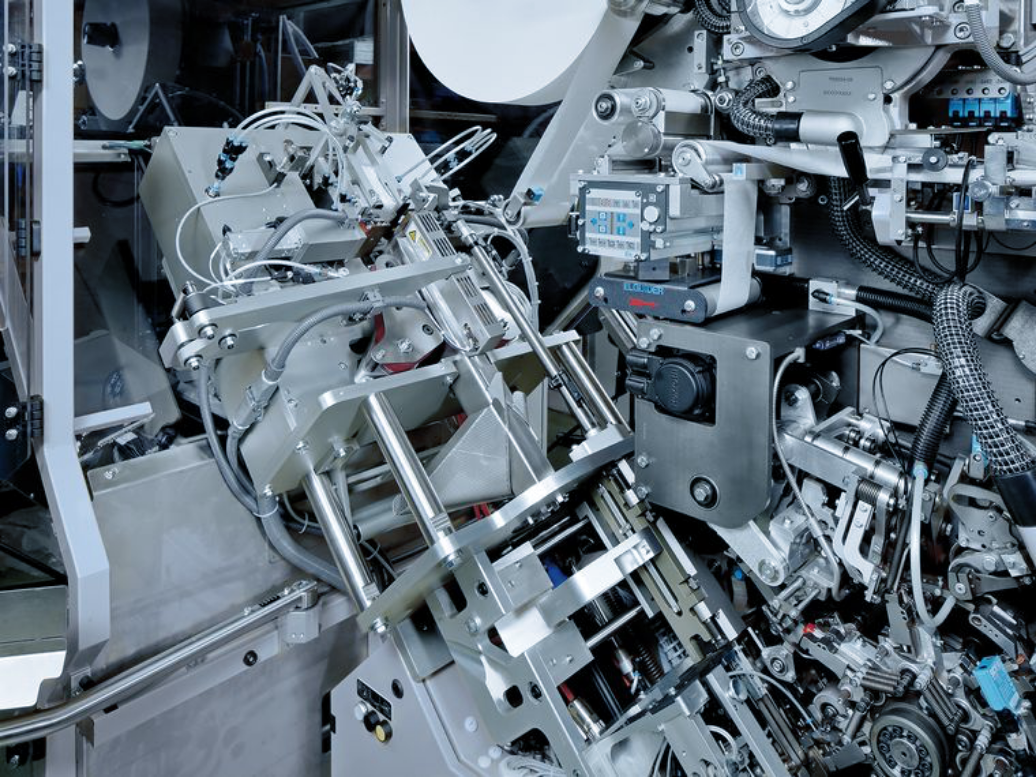

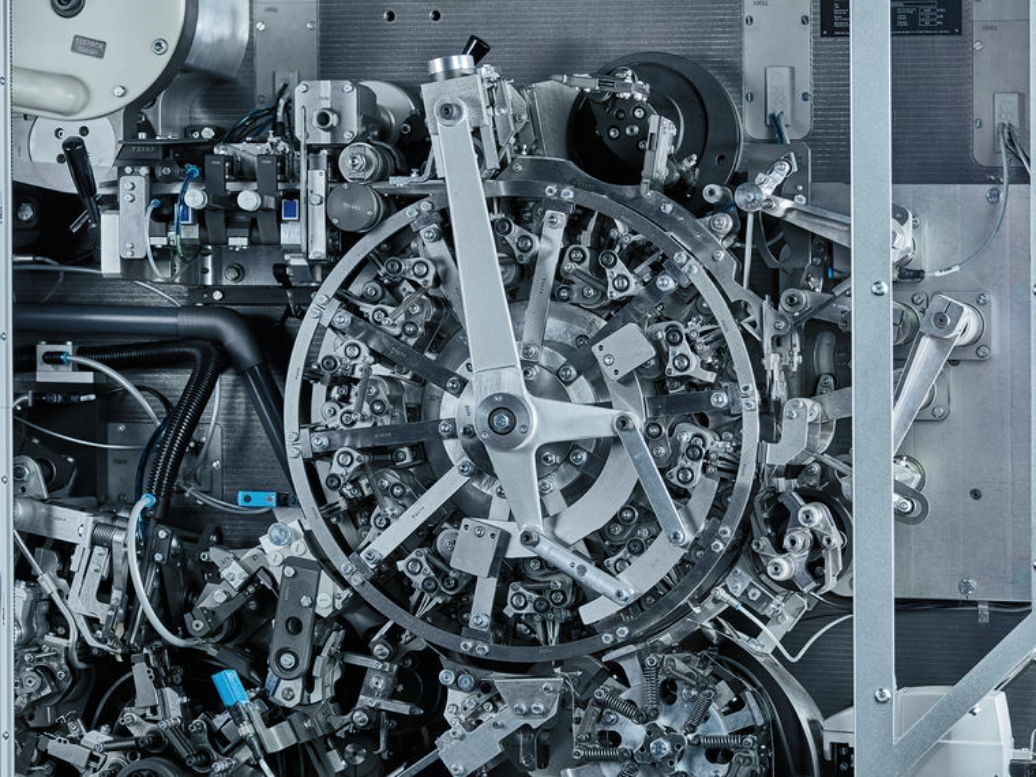

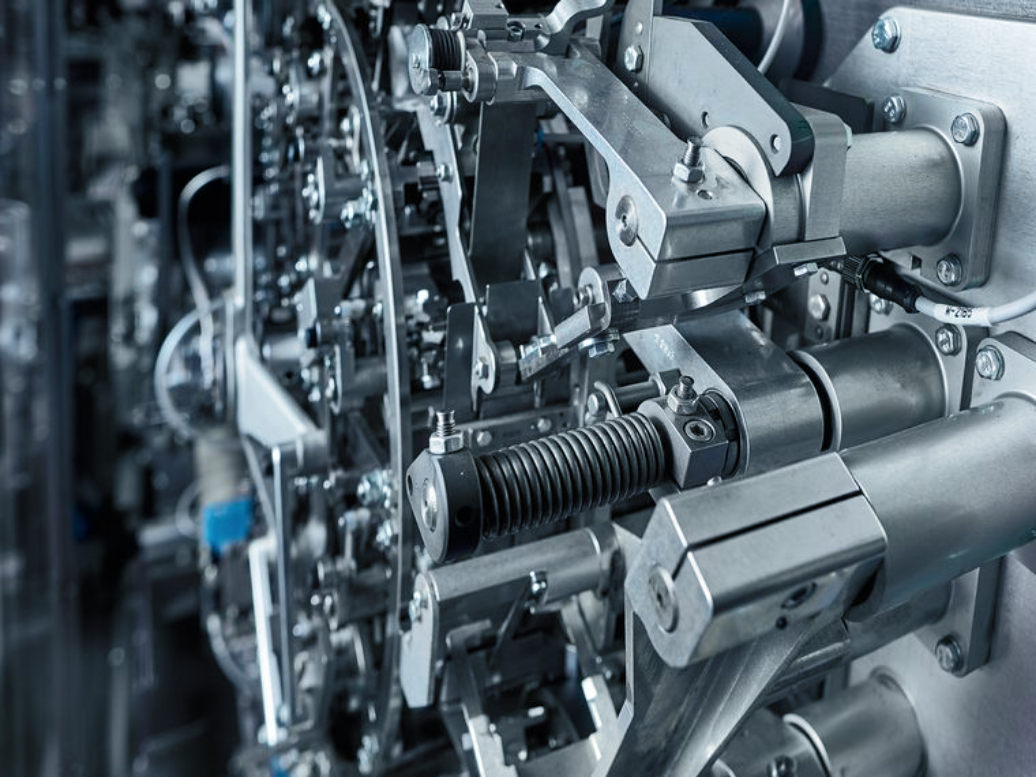

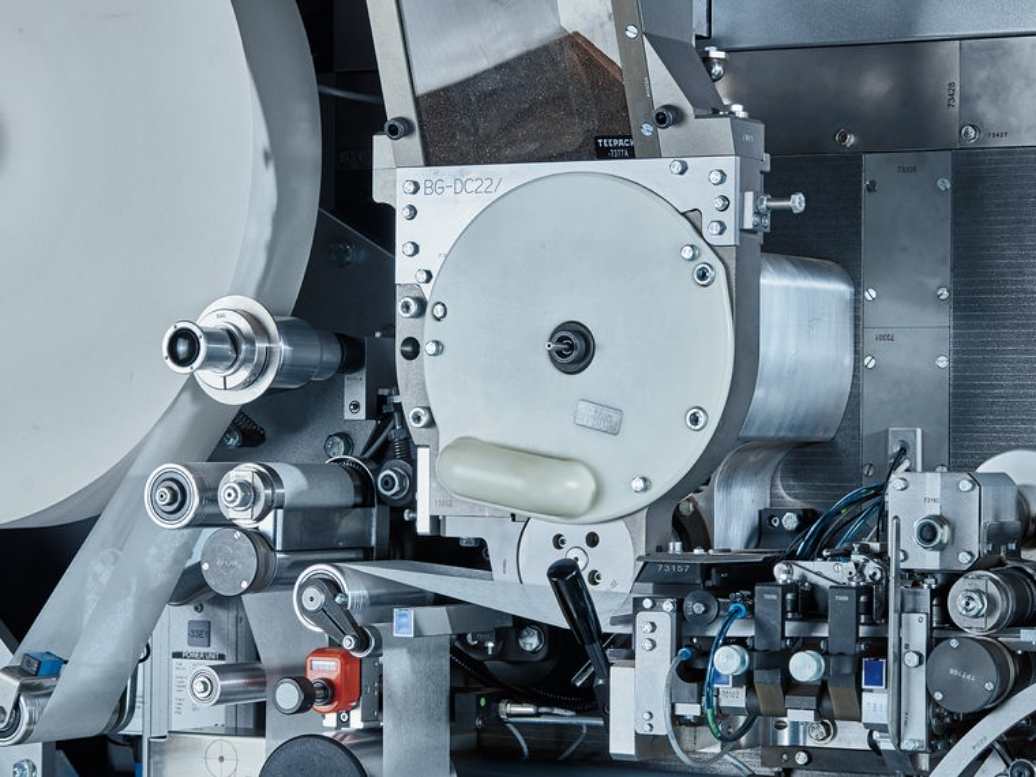

    PERFECTA FLOWPACK by TEEPACK is a perfect all-in-one solution – a machine for the manufacture of double chamber tea bags with an integrated Flowpack unit: Ten or more premium double chamber tea bags in flowpacks are packaged in a highly efficient manner. The heat seal foil ensures that the tea’s aroma remains hermetically sealed until it’s consumed. Another advantage of TEEPACK’s PERFECTA FLOWPACK: The machine requires little floor space and is extremely economical since it avoids the acquisition of a separate flowpack machine. Smooth transition between tea bag machine and the Flowpack unit is ensured.

  • Packaging variants
    • Cardboard tag, knottedCardboard tag, knotted
    • Filter bag, knottedFilter bag, knotted
    • Flowpack bagFlowpack bag
  • Technical data
    Production speedup to 400 bags/minute*
    Length x Widthapprox. 3460 x 1700 mm
    Height with hopperapprox. 2460 mm
    Height without hopperapprox. 2270 mm
    Net weightapprox. 3000 kg
    Electric power connection8.0 kW
    Consumptionup to 4.2 kWh
    Operating pressure6 bars
    Consumptionup to 850 NL/minute
    Compressed air connection½"
    *Evaluated according to your specific requirements.
