Option END OF LINE (ELC)
Expand your flexibility
- Space-saving
- Easy to adjust to different box sizes
- Can be retrofitted at the machine's place of operation
- Easy maintenance
- Details

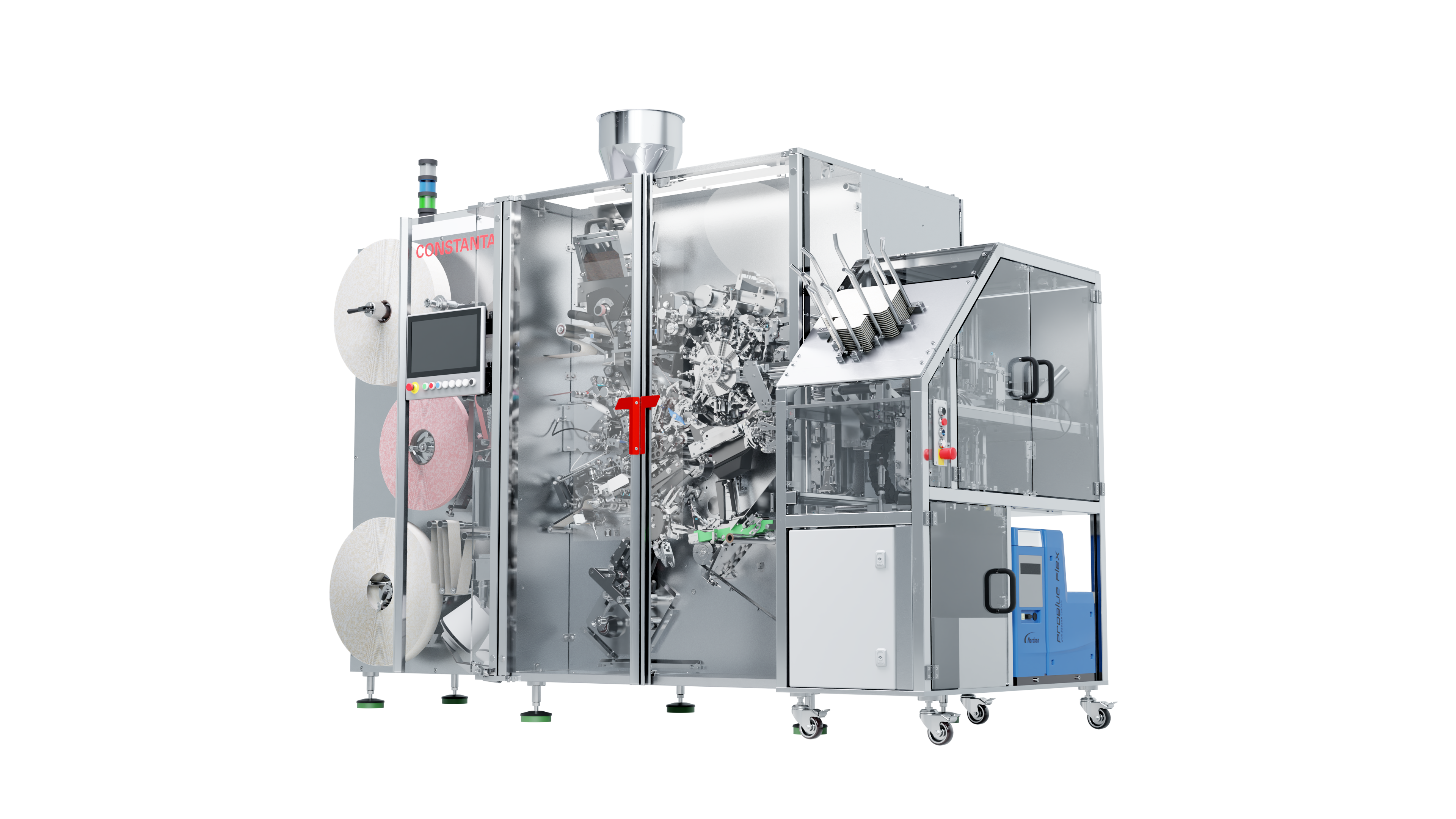

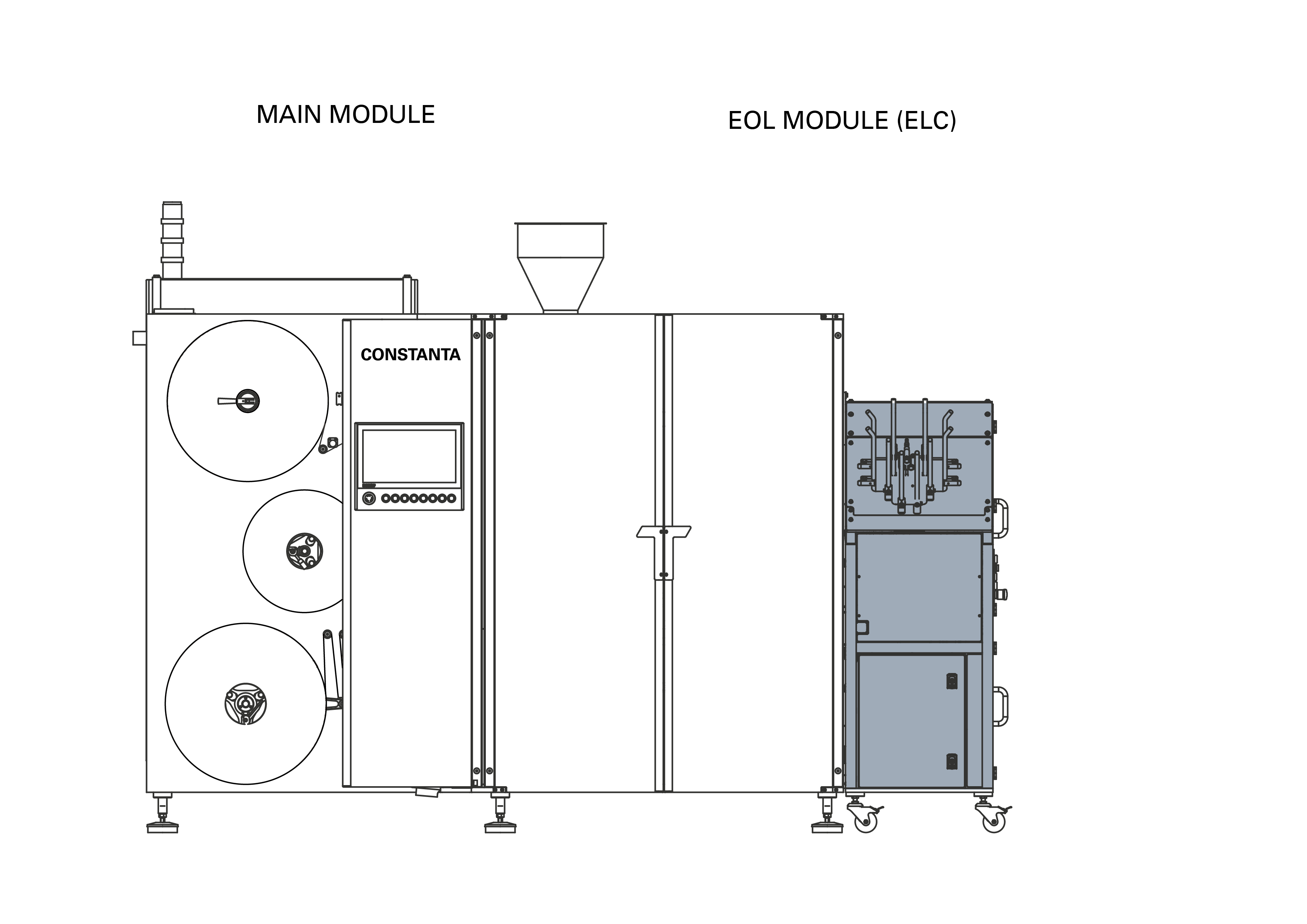

The End-of-Line for Constanta RC (ELC) is the logical next step for setting up professional tea bag production. Seamlessly integrated into the machine concept, this option allows you to realize integrated production from loose tea to ready-to-sell boxes in a small space. Thanks to its easy convertibility, the ELC adapts flexibly to your requirements, just like the basic machine.
A special highlight: The short-flap (Kurzlasche) closure box provides enhanced security through glued short flaps while remaining reclosable. No additional overwrapping (e.g., film) is required. The short flaps (Kurzlasche) are glued and closed (double closing – top and bottom) in the End-of-Line Module (ELC) – with no need for additional machinery.
- Types of boxes

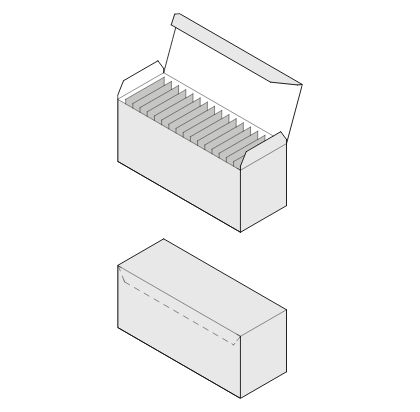

The TUCK-IN CLOSURE BOX is a standard box used by most tea manufacturers worldwide.

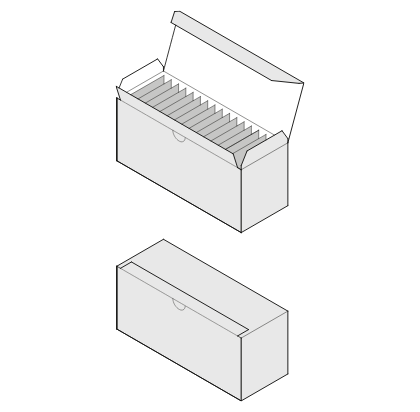

The KURZLASCHEN CLOSURE BOX offers more security by two glued short flaps (Kurzlasche) as well as a re-closable solution and does not need overwrapping.
- Technical Data
Production Speed up to 250 bags/minute¹ Length x width approx. 3263 x 1275 mm Height with hopper approx. 2274 mm Height without hopper approx. 2080 mm Net weight approx. 2315 kg + approx. 240 kg (ELC): 2555 kg² Electric power connection 20 kW Average power consumption up to 5 kWh (including the consumption of the connected dust extractor) + approx. 0.8 kWh (ELC with gluing unit) = approx. up to 5.8 kWh Max. power consumption 9 kWh Operating pressure 6 bar Compressed air consumption up to max. 340 NI/min. Compressed air connection 1/2" Capacity 10 bags/box (fewer than 10 bags/box on request) Box dimensions Width: 42-70 mm, Height: 60-80 mm, Length: 80-180 mm Box filling speed up to 15 boxes/minute ¹ The speed depends on the count used on the END-OF-LINE MODULE (ELC). ² Depending on configuration Note: The power consumption and compressed air consumption depend on the machine configuration. The dust extractor is installed directly to the machine. It does not need a separate power supply. The dust extractor is installed directly to the machine. It does not need a separate power supply. - END-OF-LINE MODULE (ELC)
ELC - OPTIONS
- With box erector and lid closer for folding boxes (pre-glued boxes)
- 1 row (naked bags), 1 row (paper envelope bags + heat-seal envelope bags or cold-seal envelope bags)
- Short flap (Kurzlasche) gluing and short flap closure directly in the END-OF-LINE MODULE (ELC) *
- Embossing system for embossing on the lid
- Embossing system for embossing on the short flap (Kurzlasche) of the lid
BOX ERECTING DEVICE- Erects folding boxes (pre-glued boxes)
- Output: up to 15 boxes/min.
LID CLOSING DEVICE- Closes the lid and the bottom of the filled boxes
- Output: up to 15 boxes/min.
* The short flap (Kurzlasche) is glued and closed (double closing lids-top and bottom) in the END-OF-LINE MODULE (ELC). No further machinery is required.
