Option END OF LINE (ELC)

Erhöhen Sie Ihre Flexibilität

DIE VORTEILE

  • Platzsparend
  • Einfach auf unterschiedliche Boxgrößen einrichtbar
  • Am Einsatzort der Maschine nachrüstbar
  • Einfache Wartung
  • Details

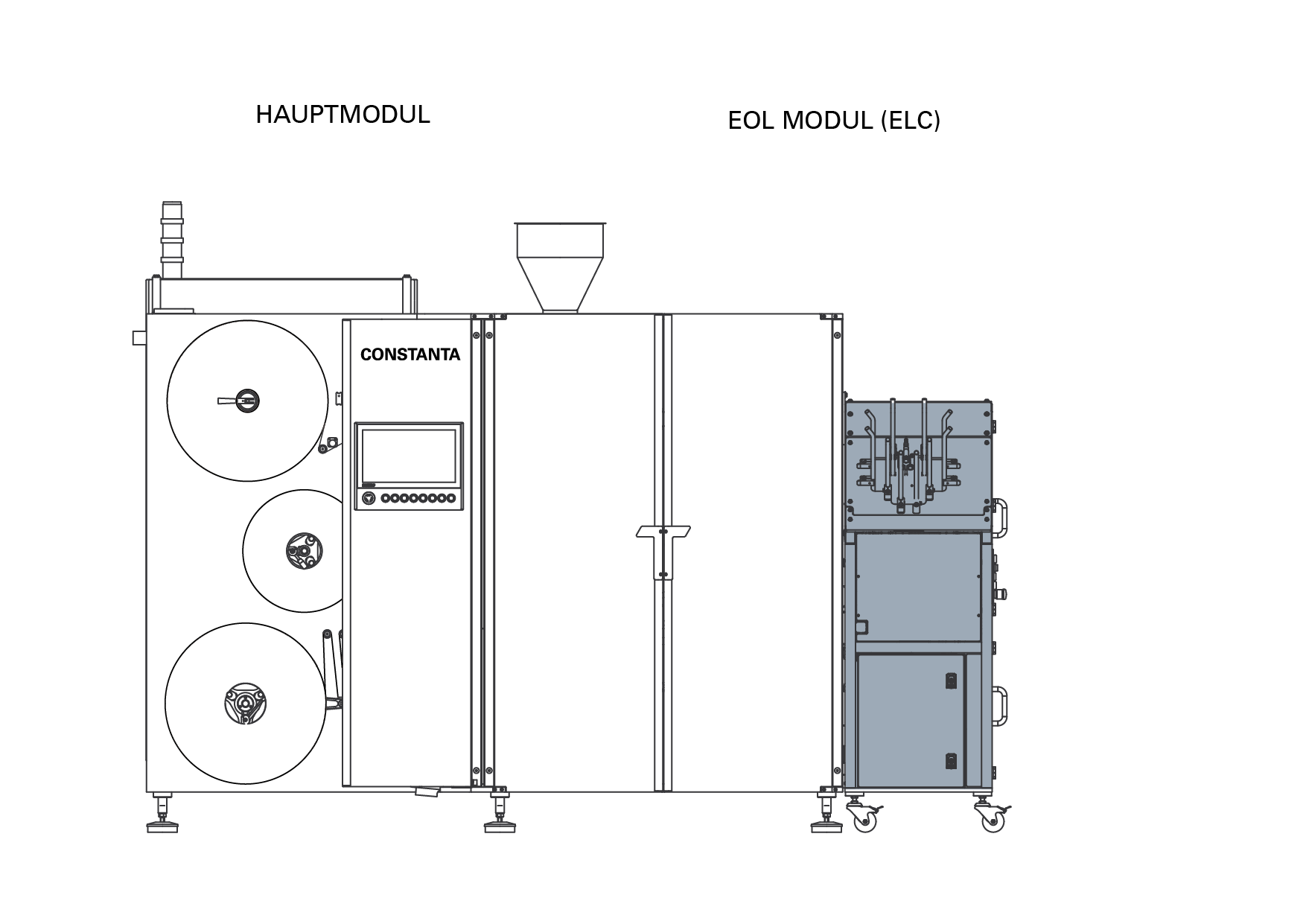

    Die End-of Line for Constanta RC (ELC) ist der logisch nächste Schritt für den Aufbau einer professionellen Teebeutelproduktion. Nahtlos in das Maschinenkonzept integriert, erlaubt Ihnen diese Option auf geringem Raum eine integrierte Produktion vom losen Tee bis hin zur verkaufsfertigen Schachtel zu realisieren. Dank der einfachen Umrüstbarkeit passt sich die ELC dabei genau wie die Grundmaschine flexibel ihren Anforderungen an.

    Ein besonderes Highlight: Die Kurzlaschen‑Schachtel bietet erhöhte Sicherheit durch die verklebte Kurzlasche und ist gleichzeitig wiederverschließbar. Eine zusätzliche Umverpackung (z. B. Folie) ist nicht erforderlich. Die Kurzlaschen werden im End-of-Line-Modul (ELC) verklebt und automatisch verschlossen (Doppelverschluss oben und unten) – ganz ohne zusätzliche Maschinen.

  • Verpackungsvarianten
    • Standard EinstecklaschenschachtelStandard Einstecklaschenschachtel
    • KurzlaschenschachtelKurzlaschenschachtel
  • Technische Angaben
    Production Speed:up to 250 bags/minute¹
    Length x width:approx. 3263 x 1275 mm
    Height with hopper:approx. 2274mm
    Height without hopper:approx. 2080 mm
    Net weight:approx. 2315 kg + approx. 240 kg (ELC): 2555 kg²
    Electric power connection:20 kW
    Average power consumption:up to 5 kWh (including the consumption of the connected dust extractor) + approx. 0.8 kWh (ELC with gluing unit) = approx. up to 5.8 kWh
    Max. power consumption:9 kWh
    Operating pressure:6 bar
    Compressed air consumption:up to max. 340 NI/min.
    Compressed air connection:1/2"
    Capacity:10 bags/box (fewer than 10 bags/ box on request)
    Box dimensions:Width: 42-70 mm, Height: 60-80 mm, Length: 80-180 mm
    Box filling speed:up to 15 boxes/minute
    You can find more information in the CONSTANTA Broschure under "Downloads".
    ¹The speed depends on the count used on the END-OF-LINE MODULE (ELC).
    ²Depending on configuration
    Note: The power consumption and compressed air consumption depend on the machine configuration. The dust extractor is installed directly to the machine. It does not need a separate power supply
  • END-OF-LINE MODULE (ELC)

    ELC - OPTIONS

    • With box erector and lid closer for folding boxes (pre-glued boxes)
    • 1 row (naked bags), 1 row (paper envelope bags + heat-seal envelope bags or cold-seal envelope bags)
    • Short flap (Kurzlasche) gluing and short flap closure directly in the END-OF-LINE MODULE (ELC) *
    • Embossing system for embossing on the lid
    • Embossing system for embossing on the short flap (Kurzlasche) of the lid


    BOX ERECTING DEVICE

    • Erects folding boxes (pre-glued boxes)
    • Output: up to 15 boxes/min.


    LID CLOSING DEVICE

    • Closes the lid and the bottom of the filled boxes
    • Output: up to 15 boxes/min.

    *The short flap (Kurzlasche) is glued and closed (double closing lids-top and bottom) in the END-OF-LINE MODULE (ELC). No further machinery is required.


  • Constanta Module
