ZENOBIA
THE PERFECT FIT

This enables you to package a wide variety of products quickly and reliably – with easy operation and short set-up times.

Direct contact with the customer is just as important to us as the consistently high quality of our machines.
Johannes Klasen
Project Manager at Teepack

THE BENEFITS

  • Consistently high production speed
  • Tool-free format change with minimal set-up time
  • Software-supported recipe management
  • Touchscreen with self-explanatory user interface
  • Modular and compact design, optimized and small installation area
  • Large number of variants for every requirement
  • Retrofitting possible at any time on existing machine
  • Stainless steel machine housing
  • Processing of all common packaging materials (paper, mono- and multi-layer composites)
  • Contactless, film-protecting longitudinal sealing

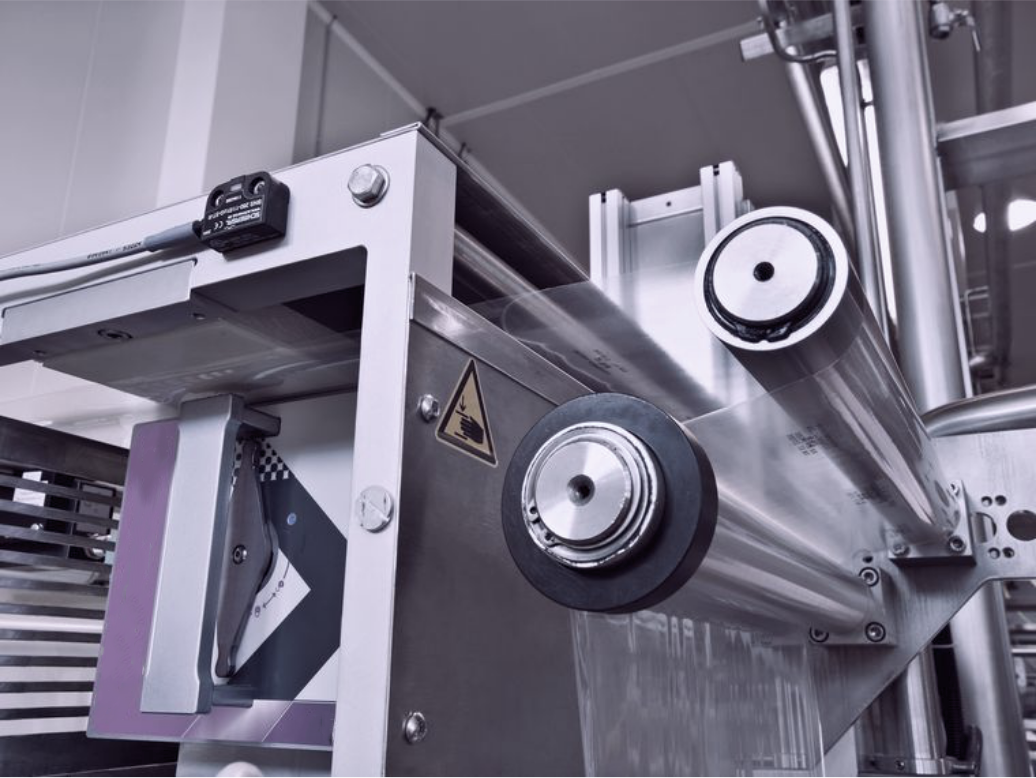

  • Precise, ultrasound-controlled film guide
  • Regulated film pull-off length via print mark control or rotary pulse encoder
  • Compatible with all common dosing systems, such as multihead weighers and many more
  • Various printing systems can be used (thermal transfer, inkjet or laser)
  • Details

    The TEEPACK Zenobia is a vertical form, fill and seal machine which can be used in almost all industries. Due to its modular design and the extensive modular equipment and upgrade system, the vertical tubular bag machine adapts perfectly to the needs and requirements of your product.

    Whether tea, coffee, pasta, rice, cereals or legumes: the Zenobia impresses with its high flexibility in format selection. With the vertical form, fill and seal machine, you can produce the tailor-made packaging variant you need for your product.

    With up to 200 bags per minute, the Zenobia not only sets new standards in efficiency, but also ensures that your production equipment is used as economically as possible thanks to its consistently high output.

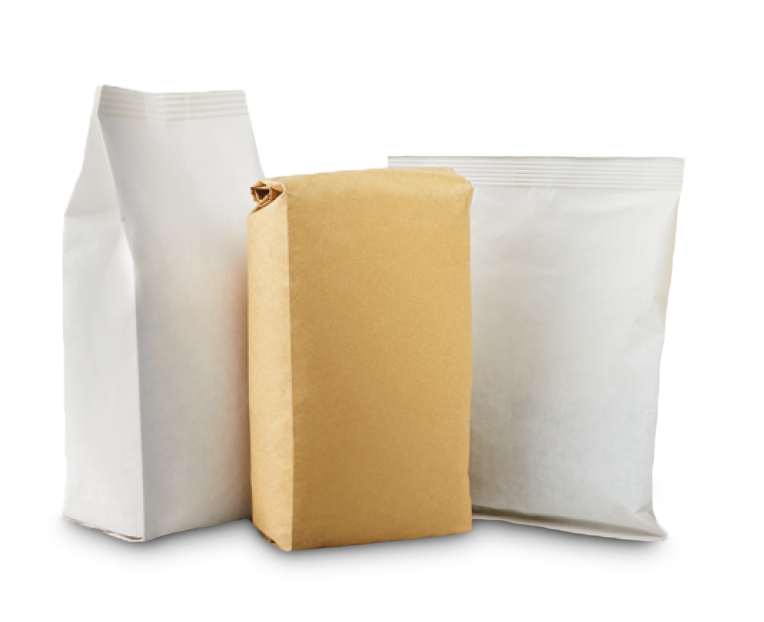

  • Packaging variants

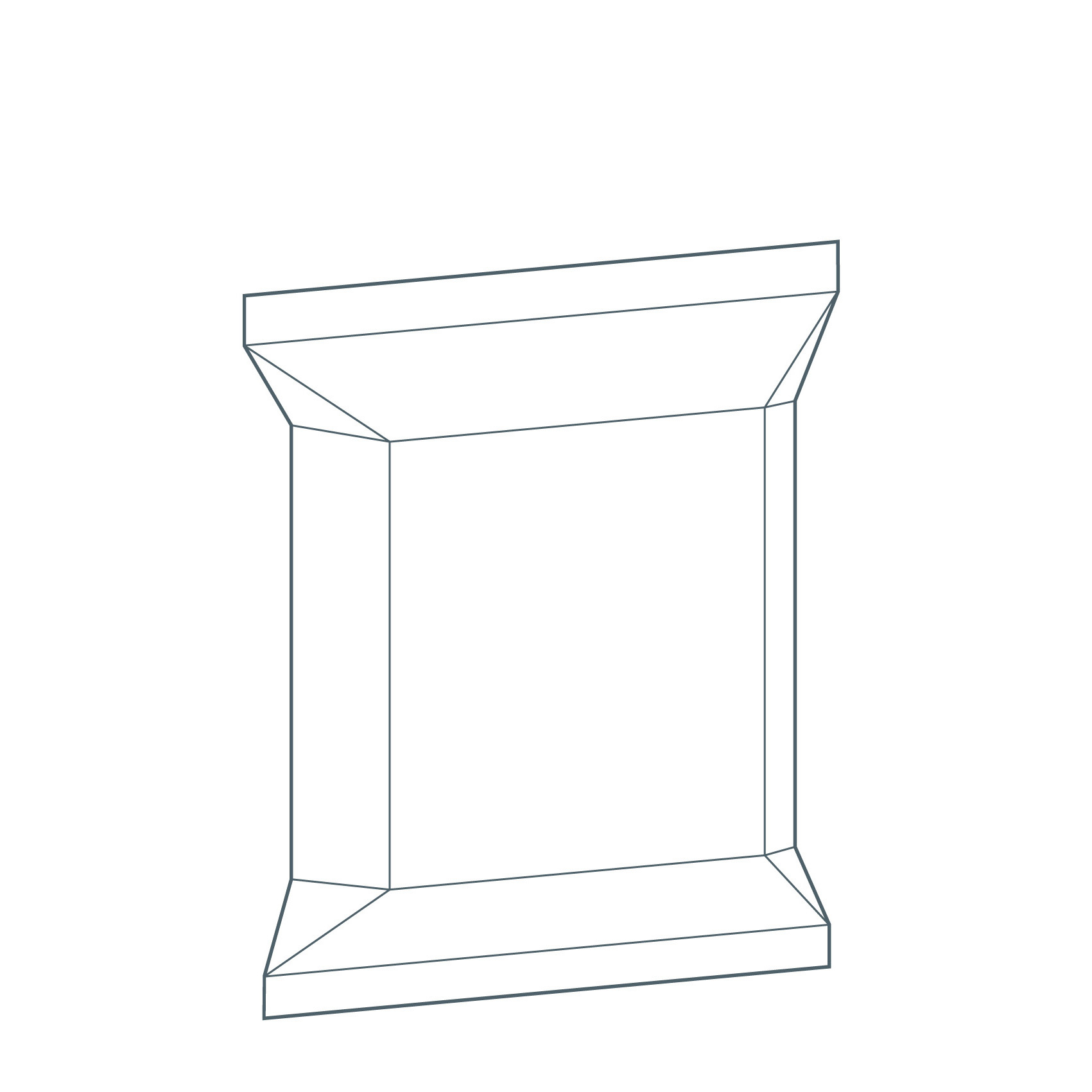

    • Pillow BagPillow Bag

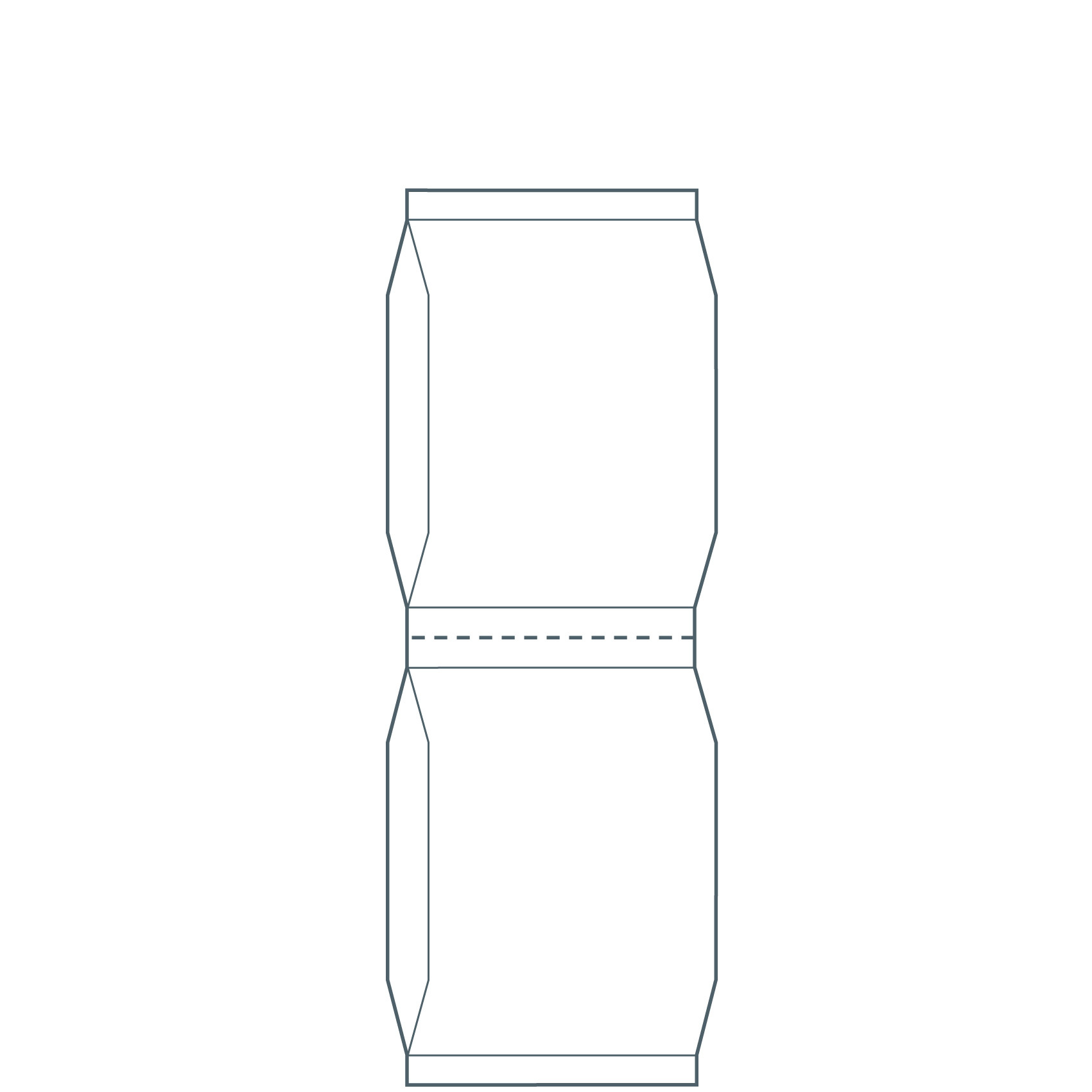

    • Chain BagChain Bag

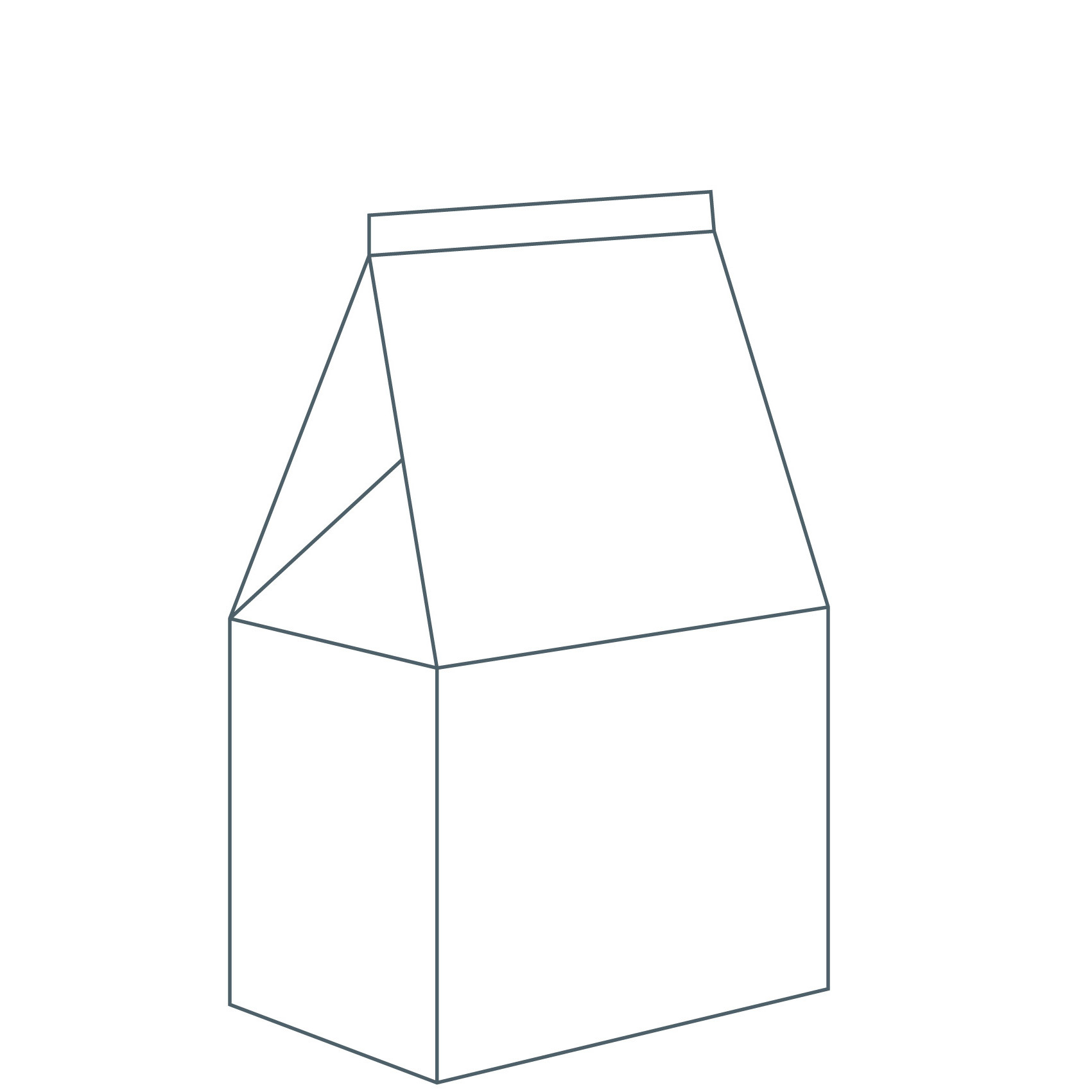

    • Gusseted BagGusseted Bag

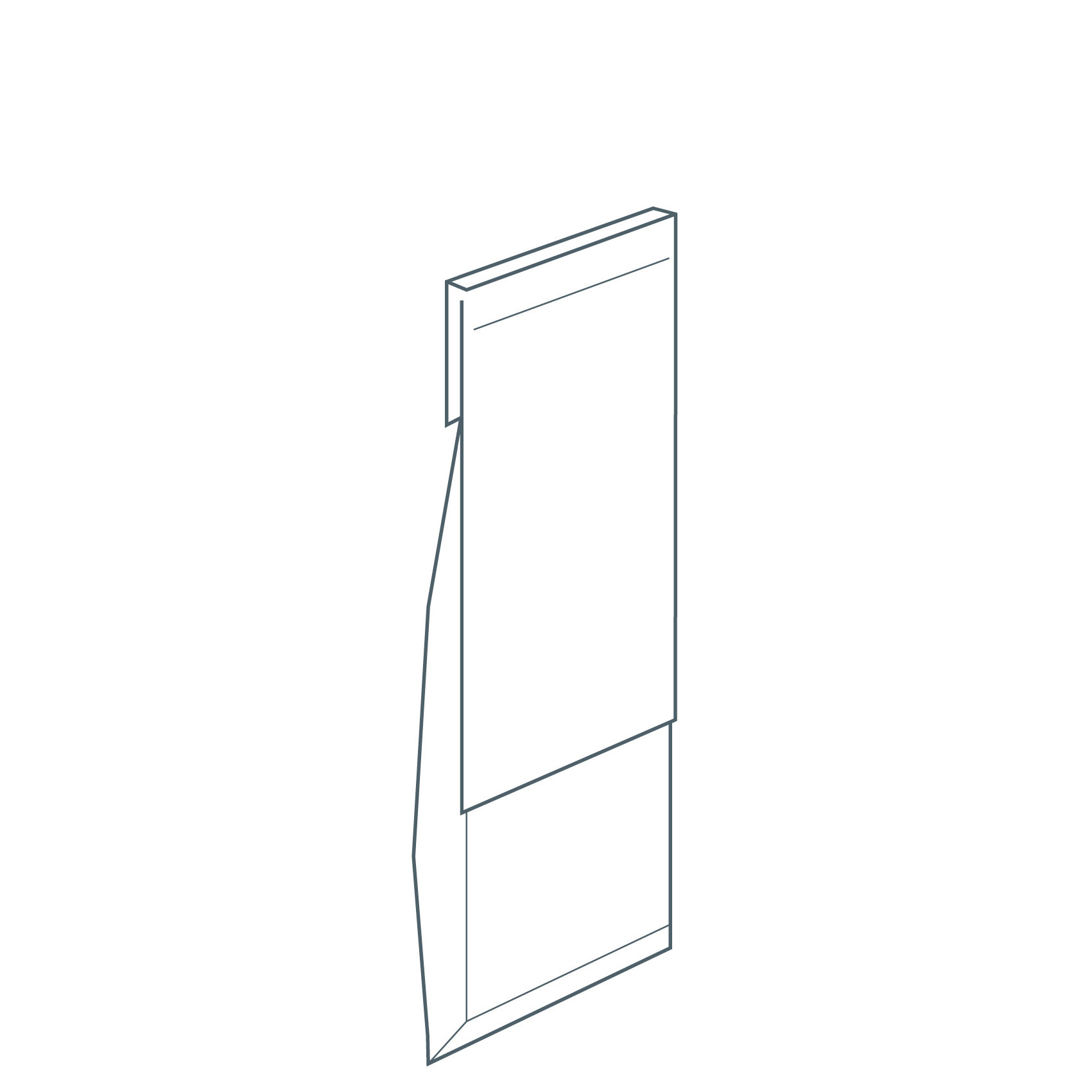

    • Premium BagPremium Bag

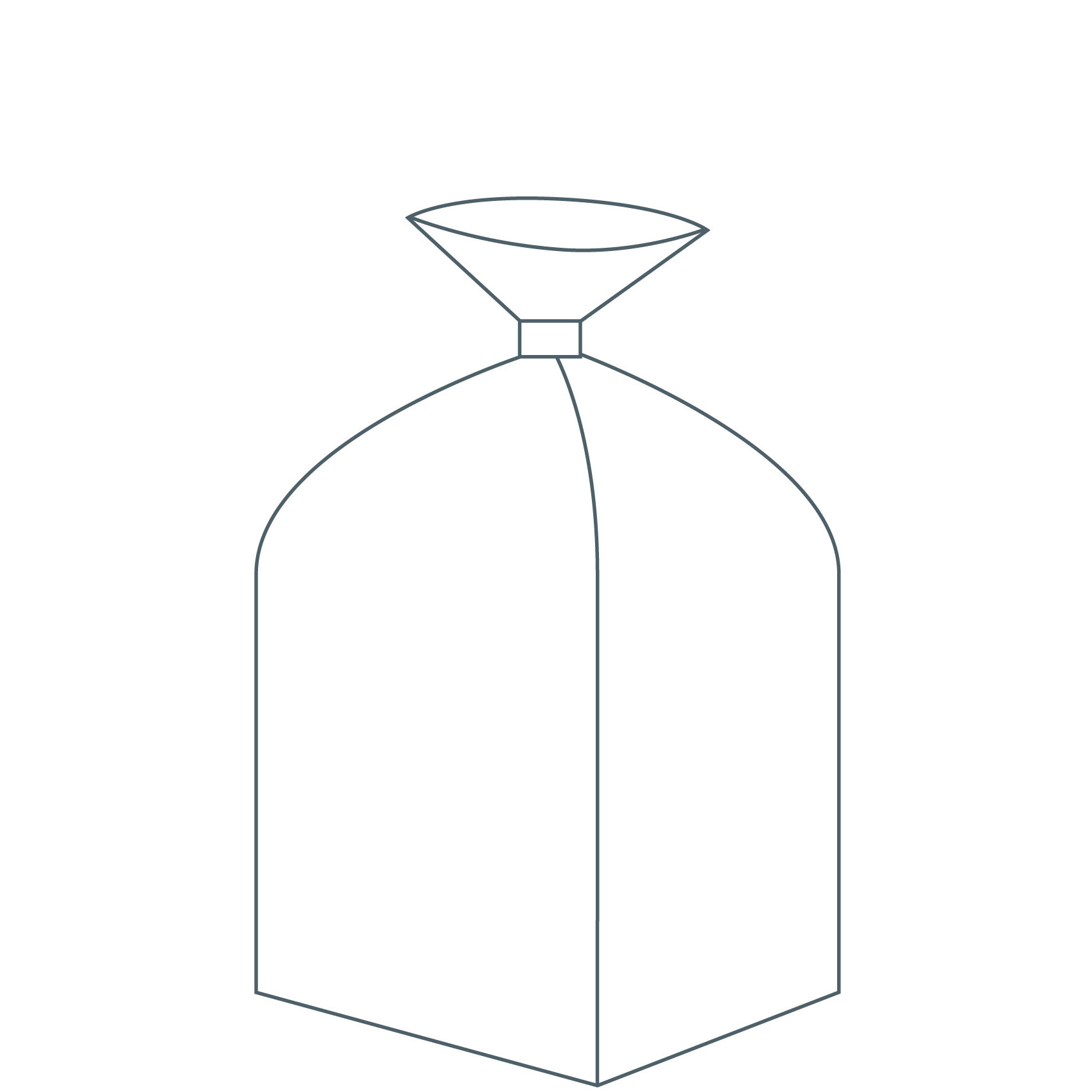

    • Clip BagClip Bag

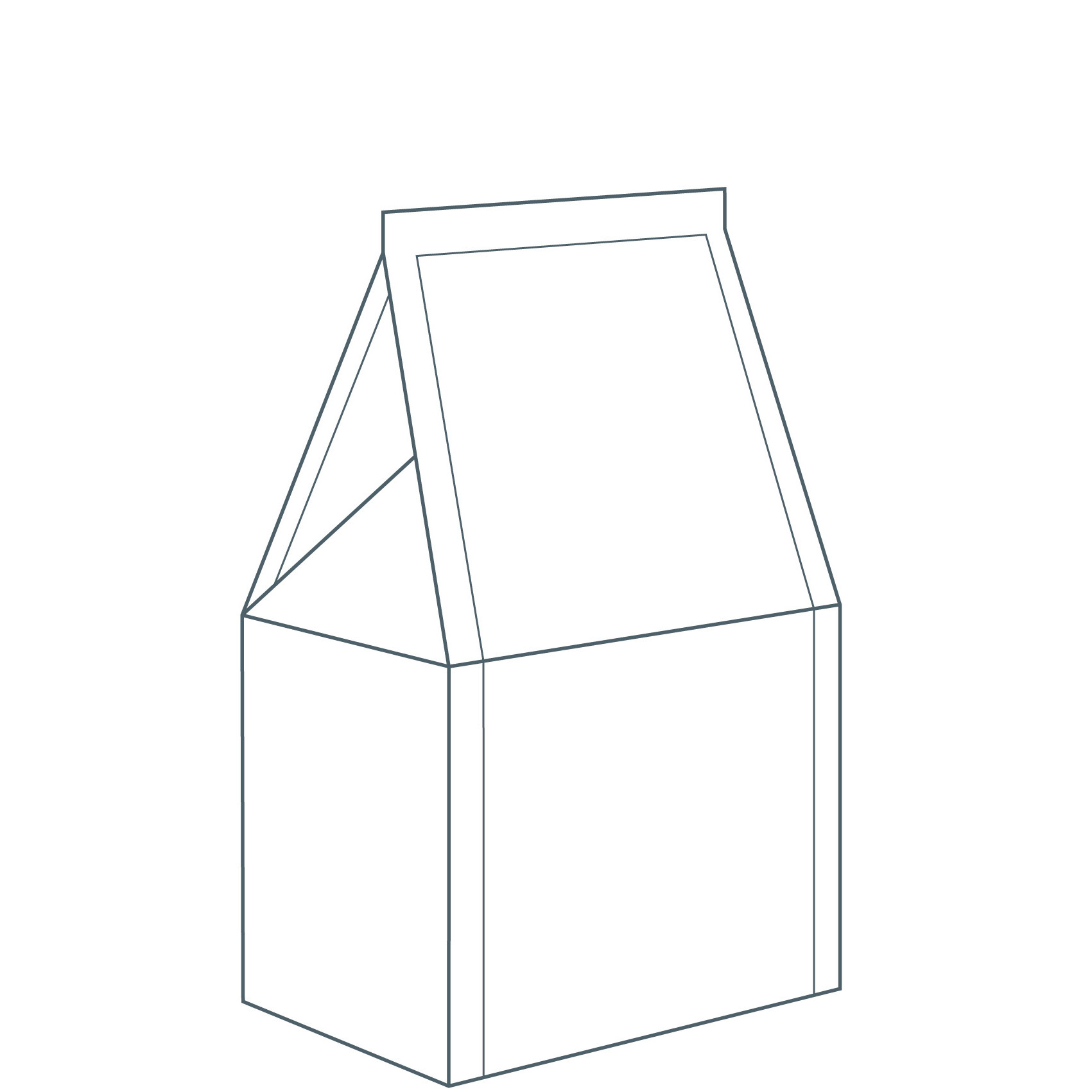

    • Block Bottom Bag Gable TopBlock Bottom Bag Gable Top

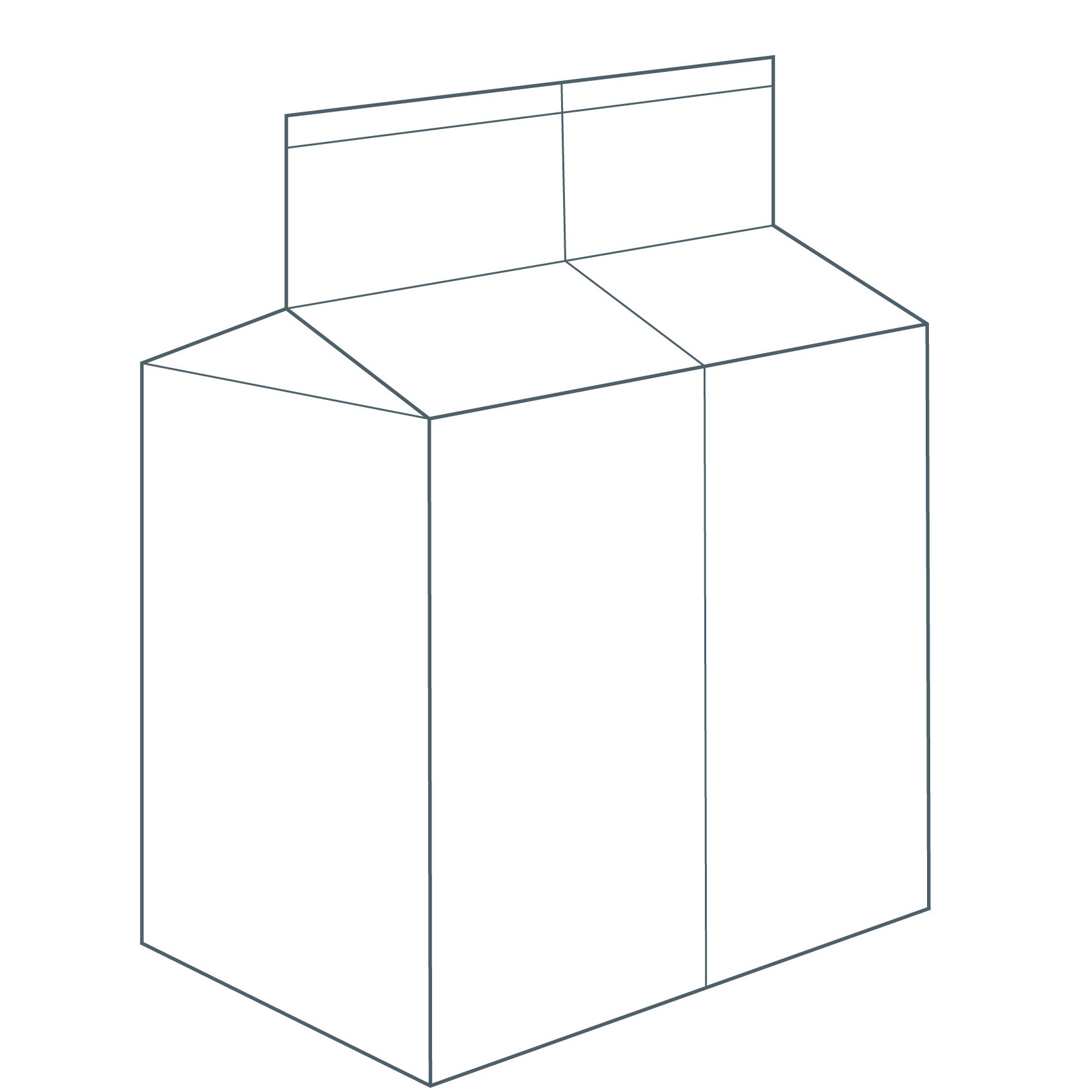

    • Block Bottom Bag Air FreeBlock Bottom Bag Air Free

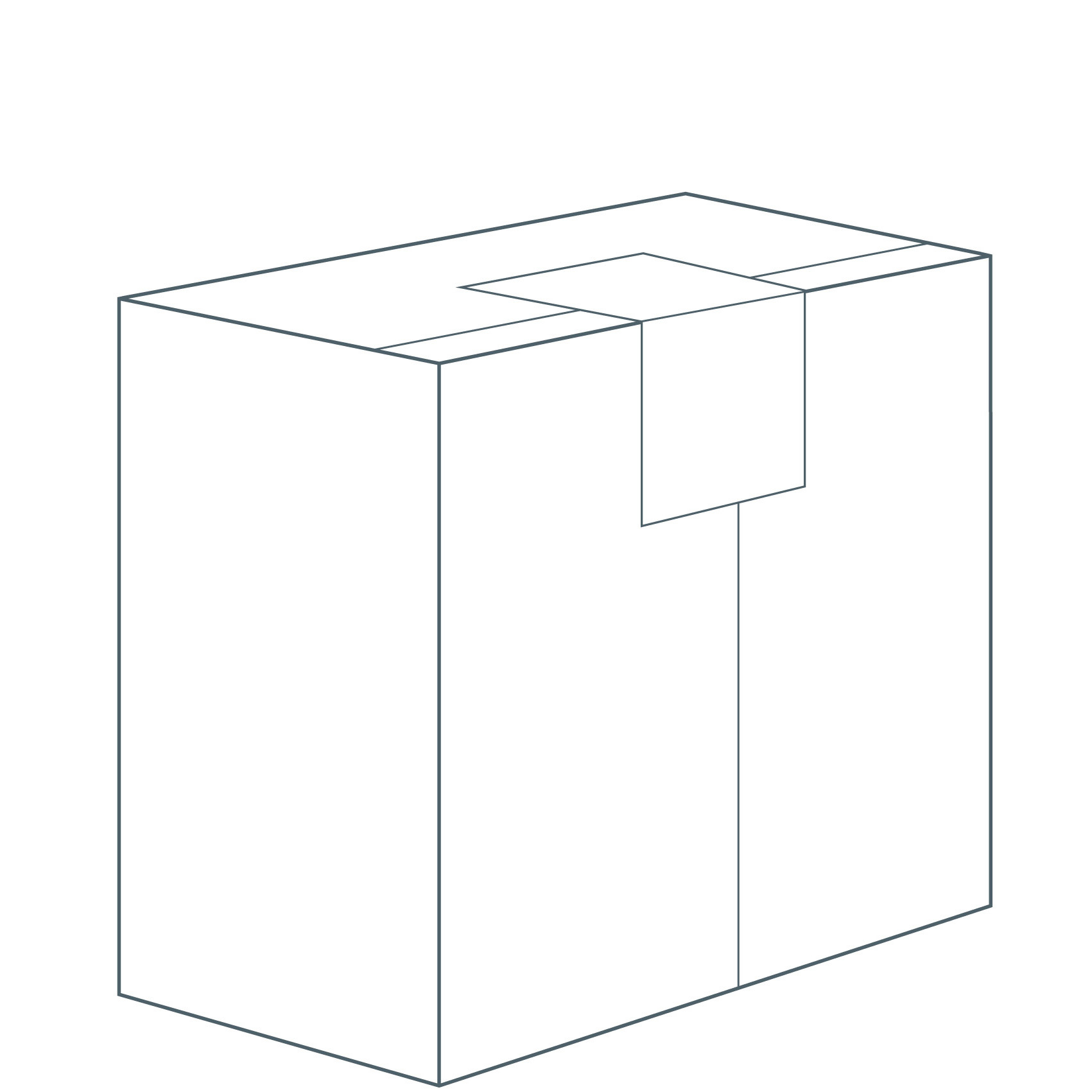

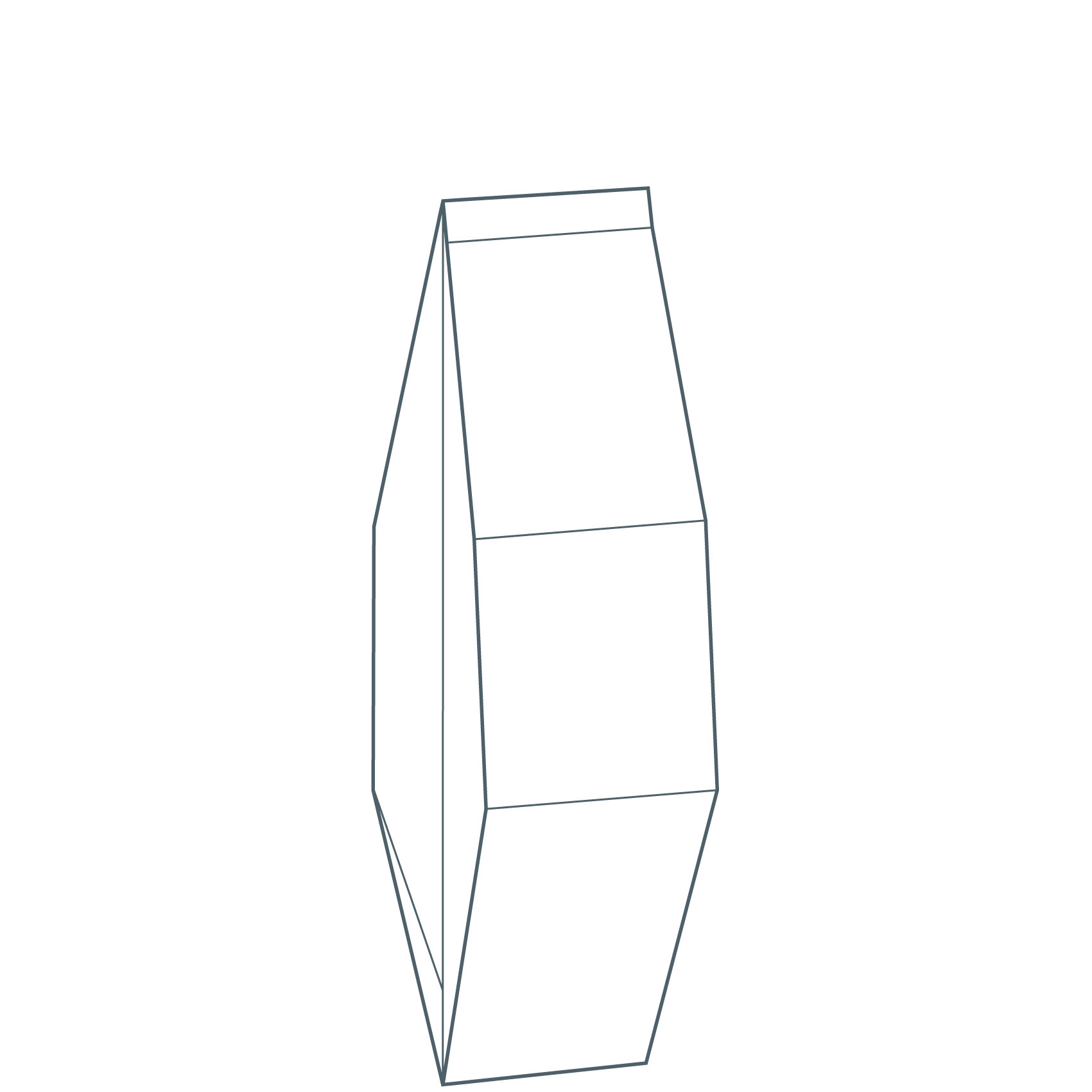

    • Block Bottom Bag Folded TopBlock Bottom Bag Folded Top
    • Block Bottom Bag Corner SealBlock Bottom Bag Corner Seal
  • Technical data
    Film dimensions
    Foil widthmax. 650 mm
    Foil roll diametermax. 550 mm
    Inner roll core diameter76-152 (3"-6") mm
    Nominal output
    Pillow Bag200 bags per minute
    Block Bottom Bag Gable Top130 bags per minute
    Block Bottom Bag Folded Top100 bags per minute
    Block Bottom Bag Air Free100 bags per minute
    Connection data
    Mains connection100 bags per minute
    Air Pressure(min.) 6 bar
    Protection classIP54
    Machine colorStainless steel V2A
    *technical changes reserved
  • Downloads
  • Video
REQUEST AN OFFER

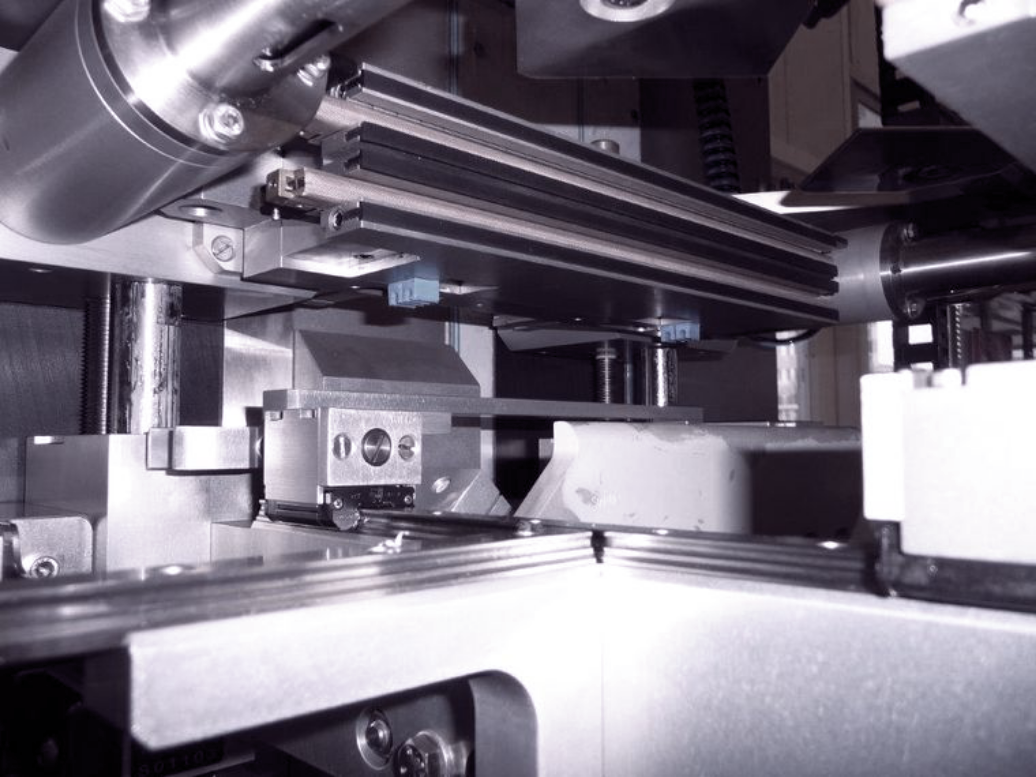

  • With sealing systems such as an impulse, heat and ultrasound sealing system, different types of sealing can be implemented.

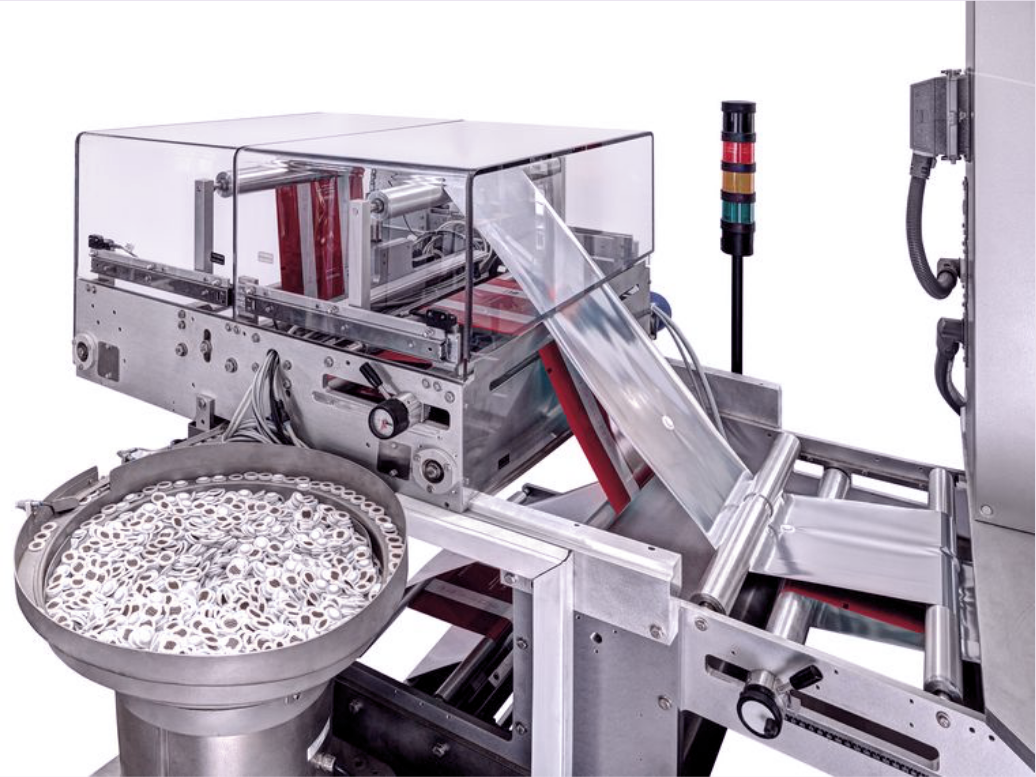

  • With the valve application, up to 100 aroma or relief valves can be attached to the film web per minute.
  • Gas systems are used to effectively protect oxygen-sensitive products - for high product quality and a longer shelf life.

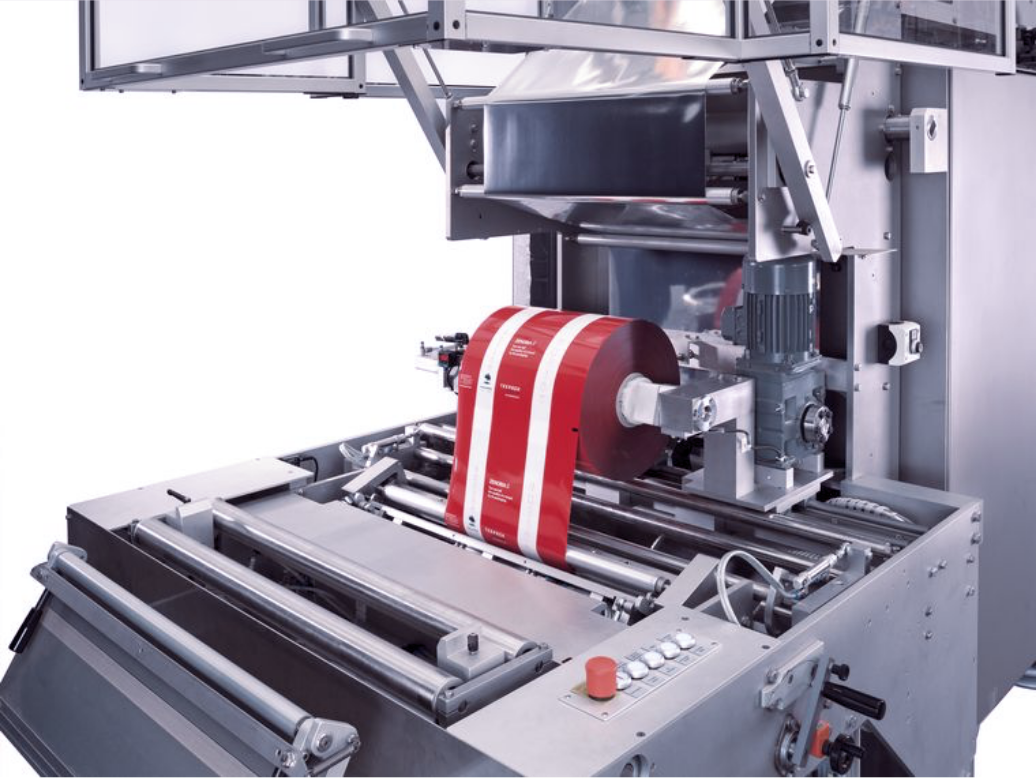

  • The roll changer enables the roll to be changed while production is running, without flash and in rapport length.

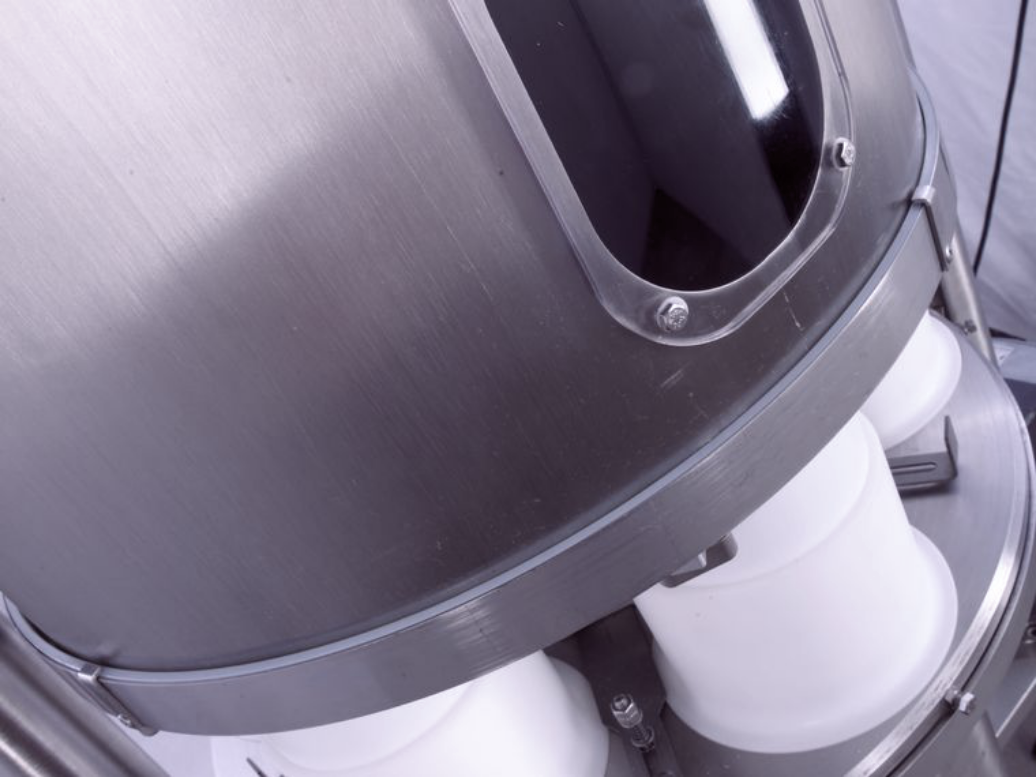

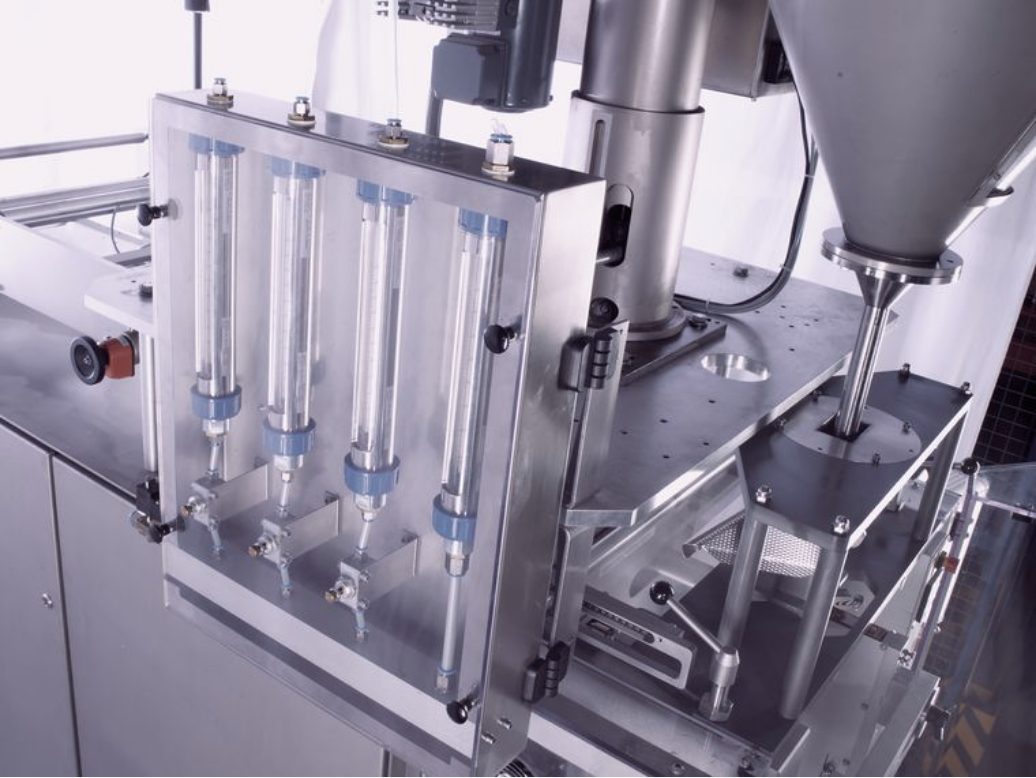

  • There are dosing systems for all different products, such as cup dosing, auger dosing systems and multihead weighers.

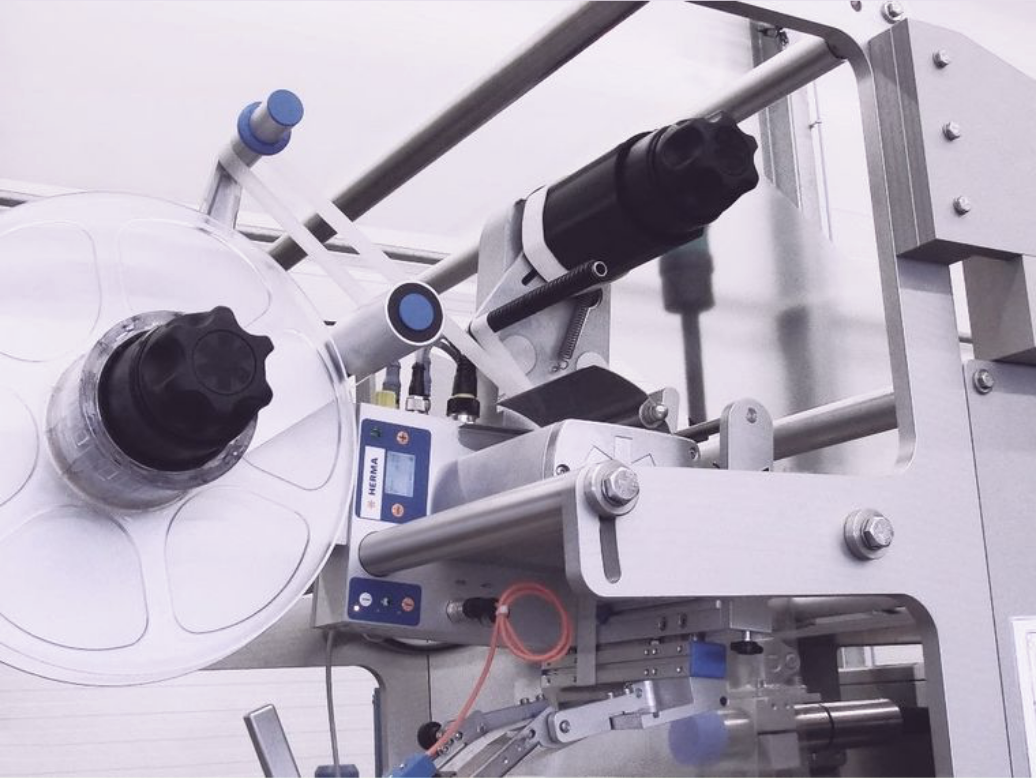

  • Labeling can be integrated in several places - for a synchronized production and labeling speed.
  • Optional printing systems such as thermotransfer, inkjet or laser printers enable the print of the packaging dates and barcodes.

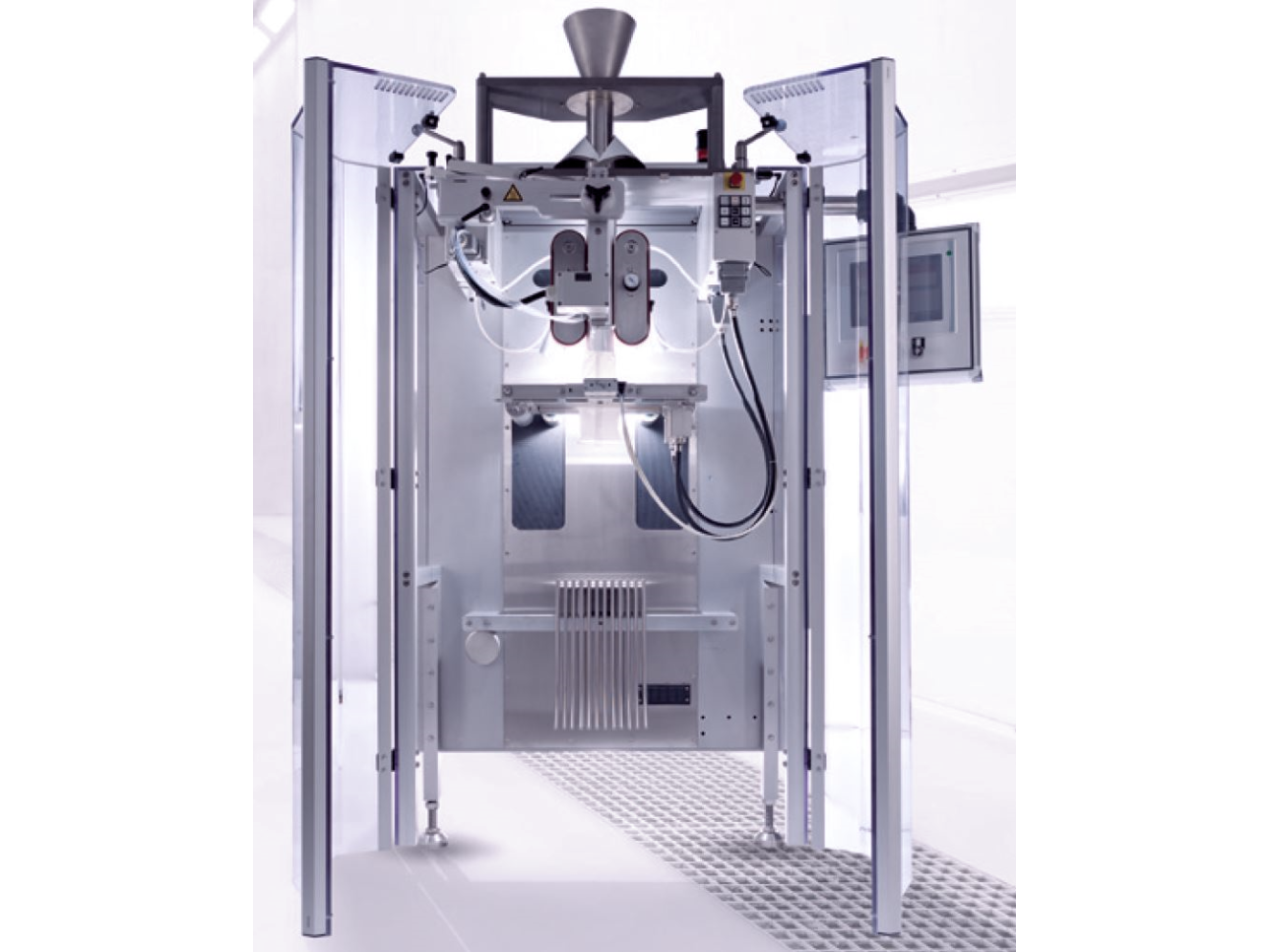

  • Zenobia Pillow

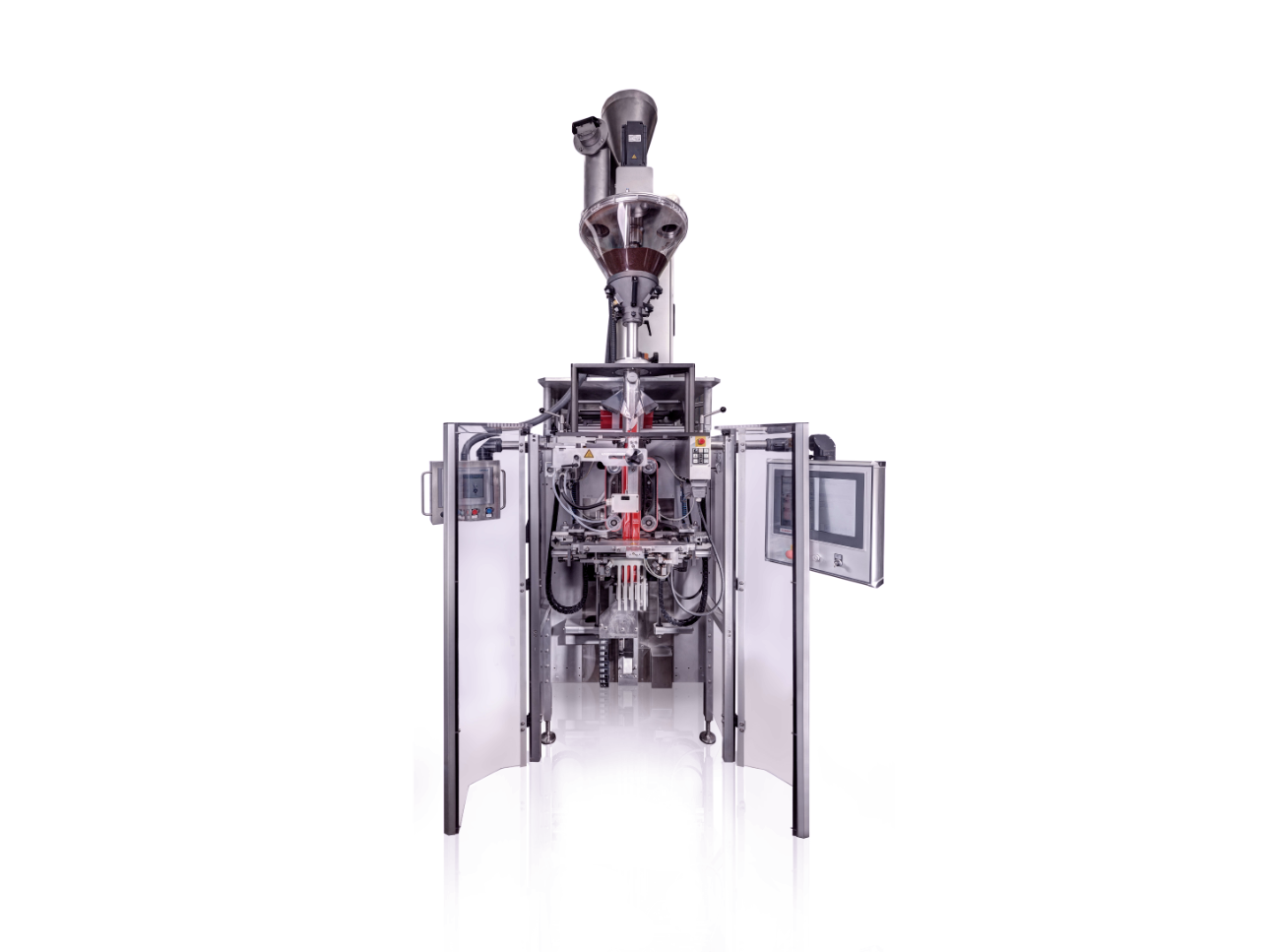

  • Zenobia with Auger Filler and Air Free

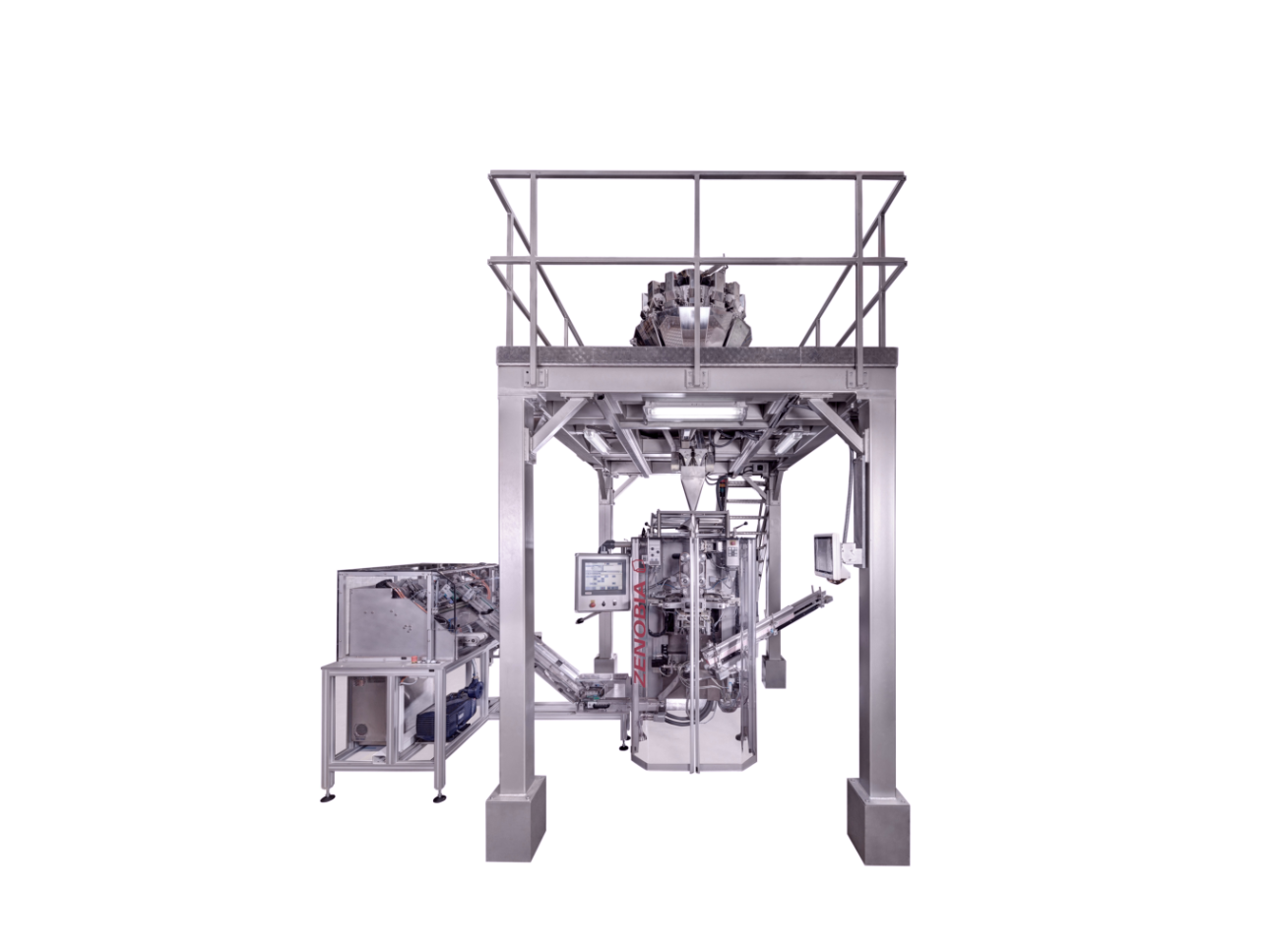

  • Zenobia Premium Bag
